SPECIFICATIONS

• Power Amplifier Rated output & THD (8 ohm)100 W+100 W (8 Ω, THD 0.05%)
• Power Amplifier Rated output & THD (4ohm)125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.05%)
• Frequency Response20 Hz to 20 kHz : ±1 dB
• Connected loudspeaker Impedance4 – 16 Ω/ohms

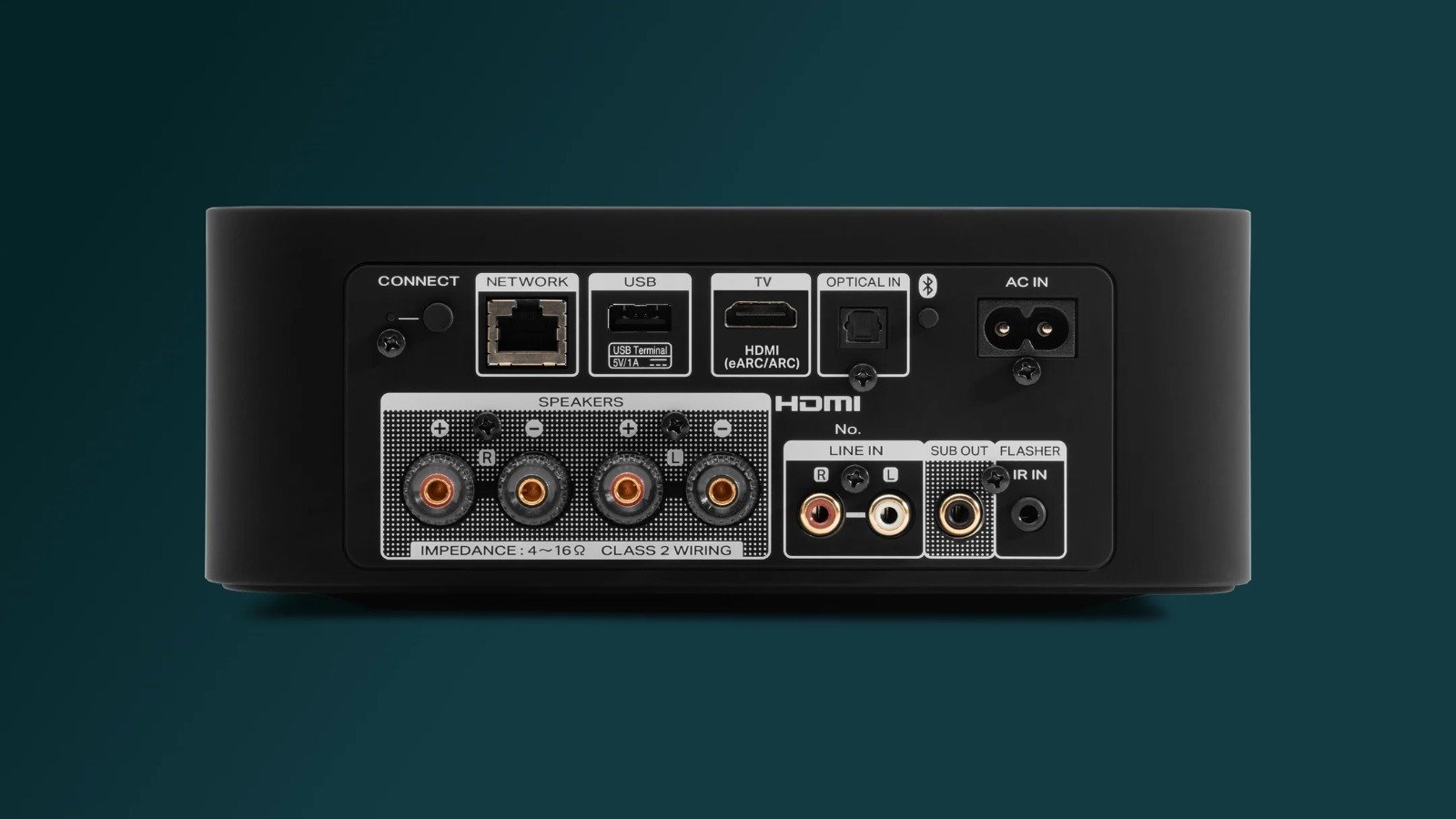

• Loudspeaker Binding Posts4-way binding posts
• Digital InputsHDMI (eARC), TOSLINK
• Analog InputsRCA L/R
• Subwoofer OutRCA Mono

• Channel AssignmentsStereo (Default), Dual Mono
• Volume Limit80-100%
• Balance-15dB to +15dB
• Adjustable High Pass / Low Pass Filters40-250 Hz / 40-120 Hz
• EQBass, Treble -5dB to +5dB
• Sound ModesStereo, Direct, Virtual, Dialog Enhancer, Night Mode
• TV Sound GroupingYes

• DecodingDolby Digital +, Dolby Digital, LPCM, DSD
• Stereo PCM / Multi-channel PCMYes / Yes
• Stereo File Formats (HEOS network share or USB)WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz

• Bluetooth ReceiveBT 4.2.X
• Bluetooth TrasmitNo
• AirPlayAirPlay 2
• SpotifySpotify Connect

• Music Services Supported (HEOS®, subject to change and local availability)Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
• Music stored on mobile deviceYes (iOS, Android or Kindle Fire)
• NAS (Network Attached Storage)Network share
• USB Storage Device PlaybackYes (FAT32, NTFS formatted drives)

• Wired ConnectivityEthernet
• Wireless ConnectivityDual band, 802.11 a/b/g/n/ac
• IR Input3.5mm
• IR LearningYes
• Control System Compatibility via TCP/IPCreston, Control4, AMX
• HEOS® AppiOS, Android, Kindle Fire

• Product ColorBlack

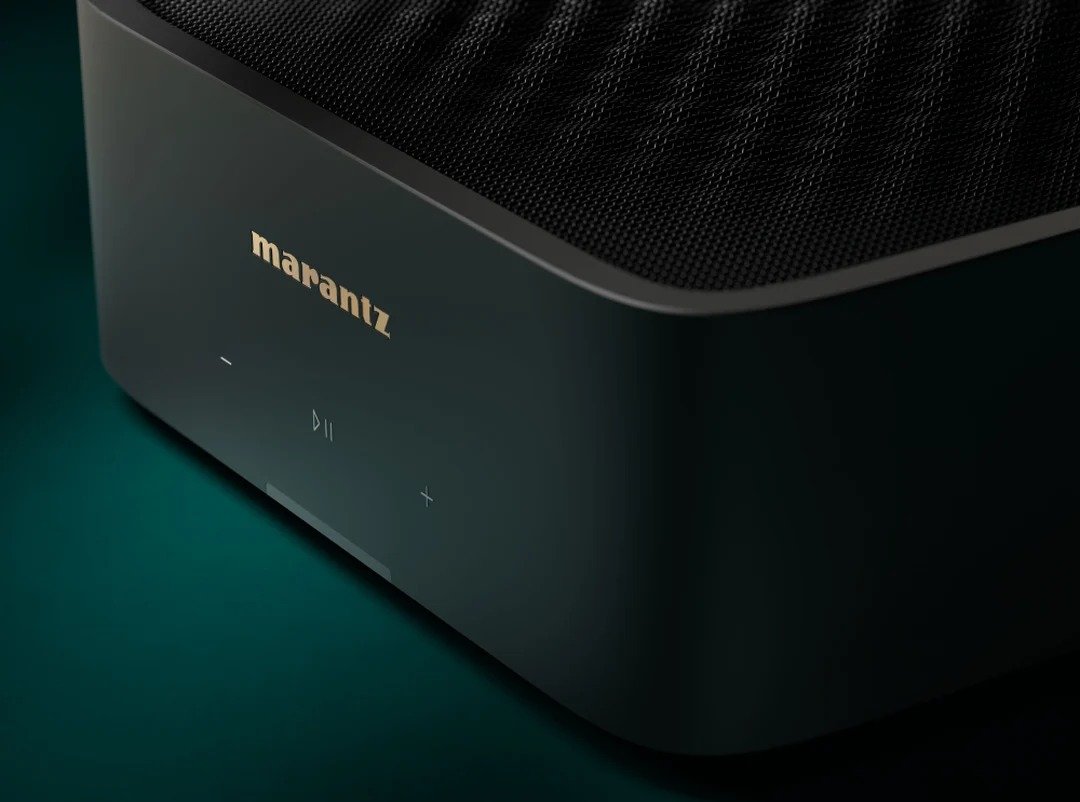

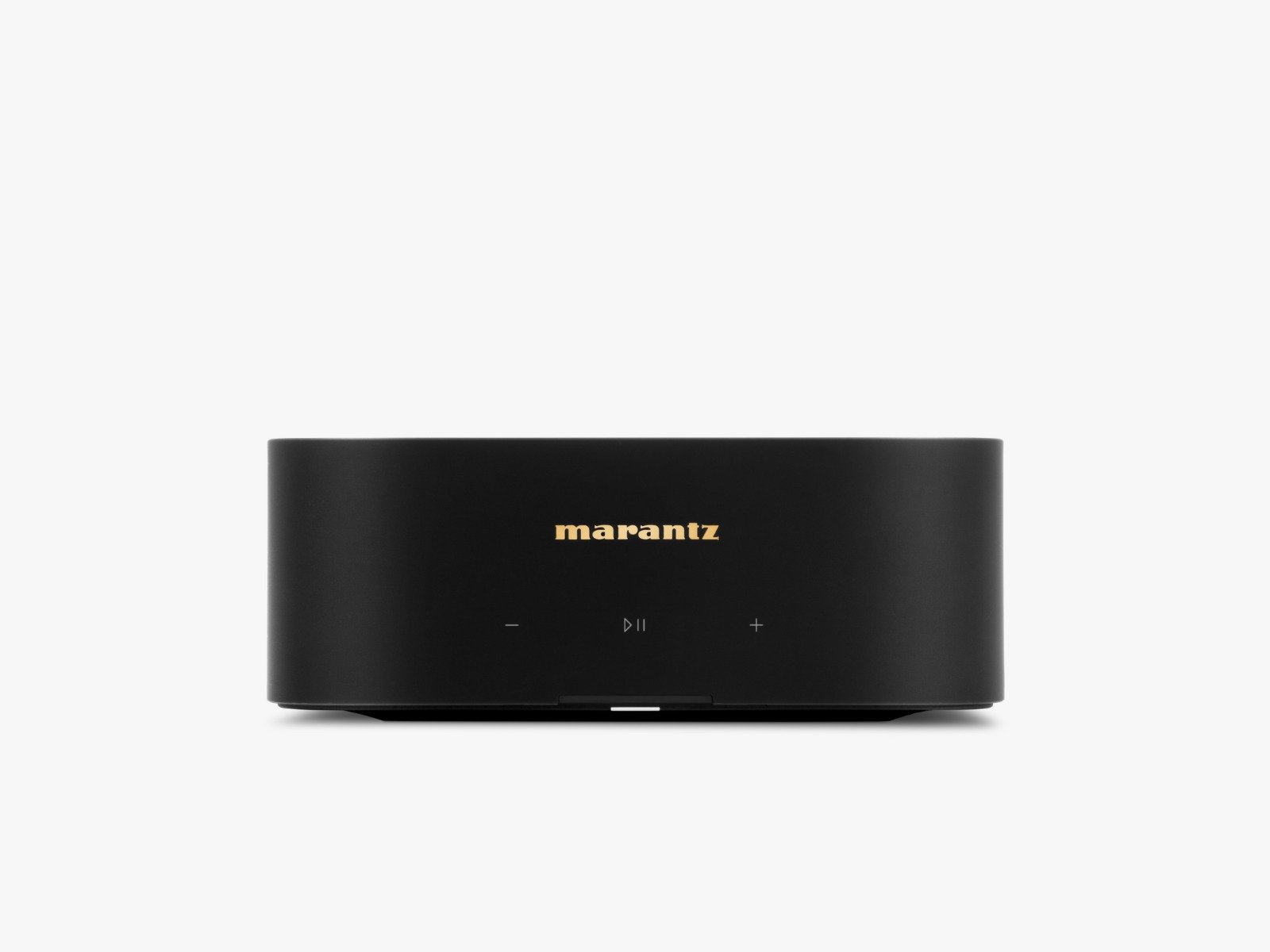

• User InterfaceVolume up/down, Play / Pause, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)
• Dimensions (W x D x H) Inches8.54 x 9.41 x 3.31
• Dimensions (W x D x H) mm217 x 239 x 84
• Weight (lbs)4.84
• Weight (kg)2.2
