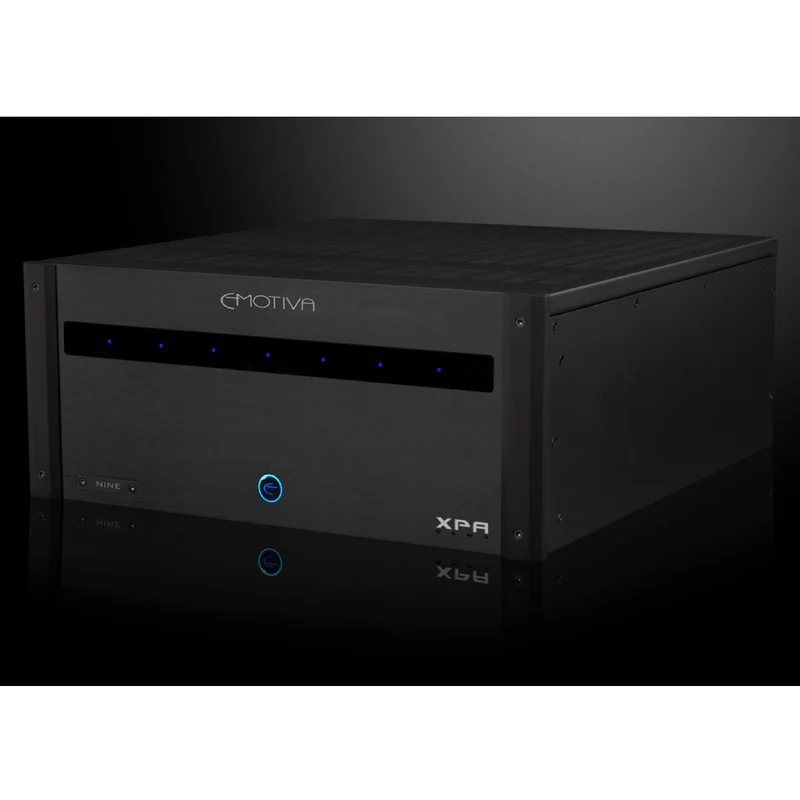

Name: XPA 9 GEN 3
SKU: 2740
Availability: InStock

Power Output	300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven. 550 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven. 300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven. 490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.
Power Bandwidth (at rated power; 8 Ohm load)	20 Hz to 20 kHz (+ / – 0.1 dB)
Broad Band Frequency Response	5 Hz to 80 kHz +0/-2 dB
THD + noise	< 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms
Signal to Noise Ratio (8 Ohm load)	> 115 dB; ref FTC rated power; unbalanced input (A-weighted) > 86 dB; ref 1 watt; unbalanced input (A-weighted)
Minimum Recommended Load Impedance (per channel)	4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads).
Damping Factor (8 Ohm load)	> 500
Input Sensitivity (for rated power; 8 Ohm load)	1.5 V
Gain	29 dB
Maximum Power Consumption	2,600 watts
Input Impedance	33 kOhms (balanced) 23.5 kOhms (unbalanced)

Power Output	65 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven. 100 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven. 65 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven. 100 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.
Power Bandwidth (at rated power; 8 Ohm load)	20 Hz to 20 kHz (+ / – 0.1 dB)
Broad Band Frequency Response	50 Hz to 80 kHz +0/-1.5 dB
THD + noise	< 0.02%; at 60 watts RMS; 1 kHz; 8 Ohms
Signal to Noise Ratio (8 Ohm load)	> 105 dB; ref FTC rated power; unbalanced input (A-weighted) > 85 dB; ref 1 watt; unbalanced input (A-weighted)
Minimum Recommended Load Impedance (per channel)	4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads)
Damping Factor (8 Ohm load)	> 500
Input Sensitivity (for rated power; 8 Ohm load)	0.8 V (800 mV)
Gain	29 dB
Input Impedance	33 kOhms (balanced) 23.5 kOhms (unbalanced)

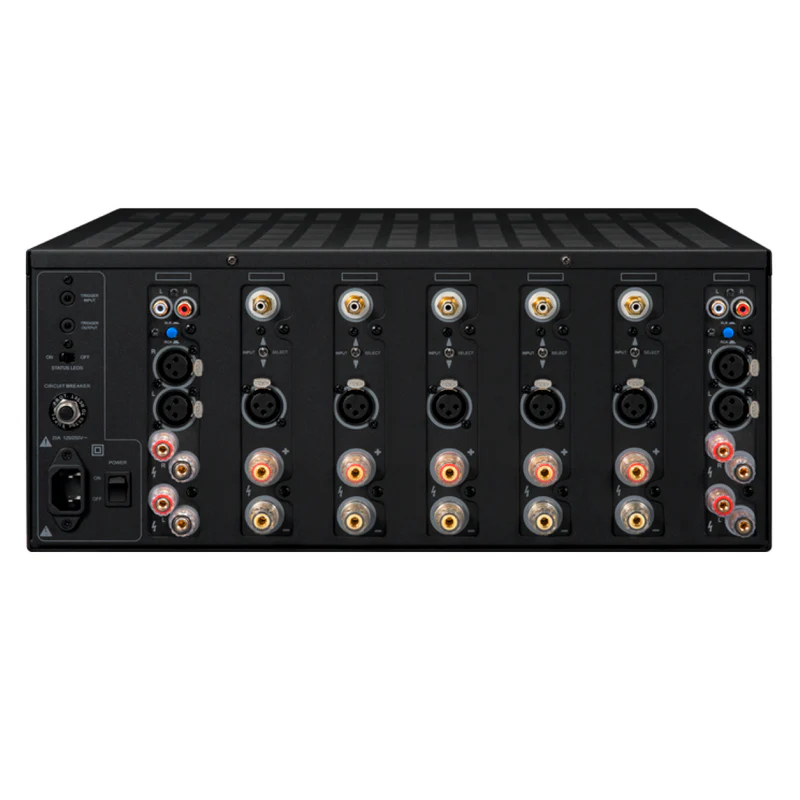

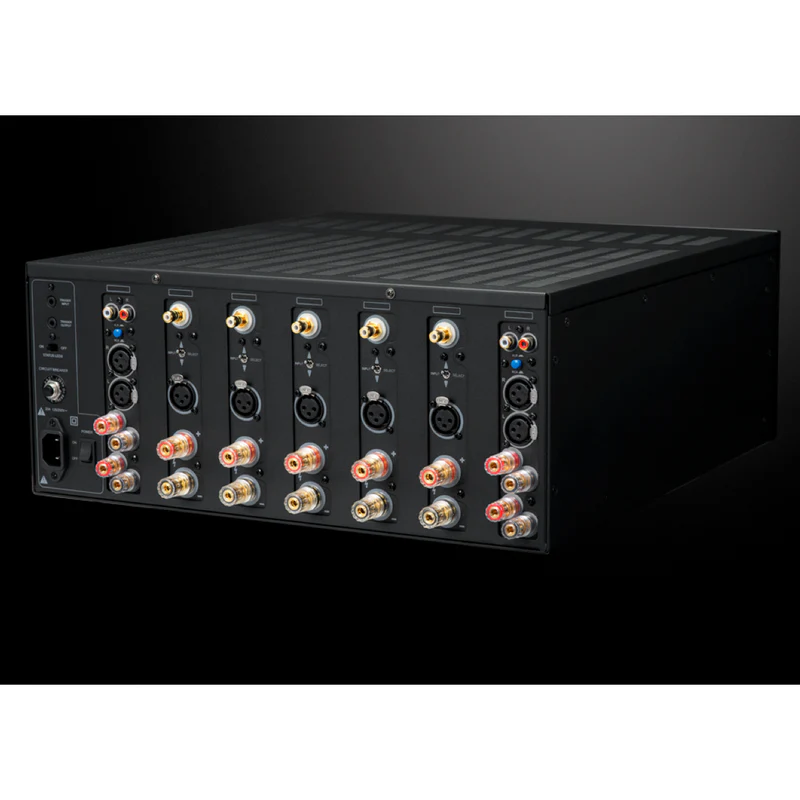

Input Connections (High-Powered Single Channel Modules)	Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable.
Input Connections (Stereo Modules)	2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable.
Speaker Output Connections	Audiophile grade, gold plated, 5-way binding posts.
Trigger	Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required Trigger Output: 12 VDC; can drive any load up to 120 mA
