Specifications

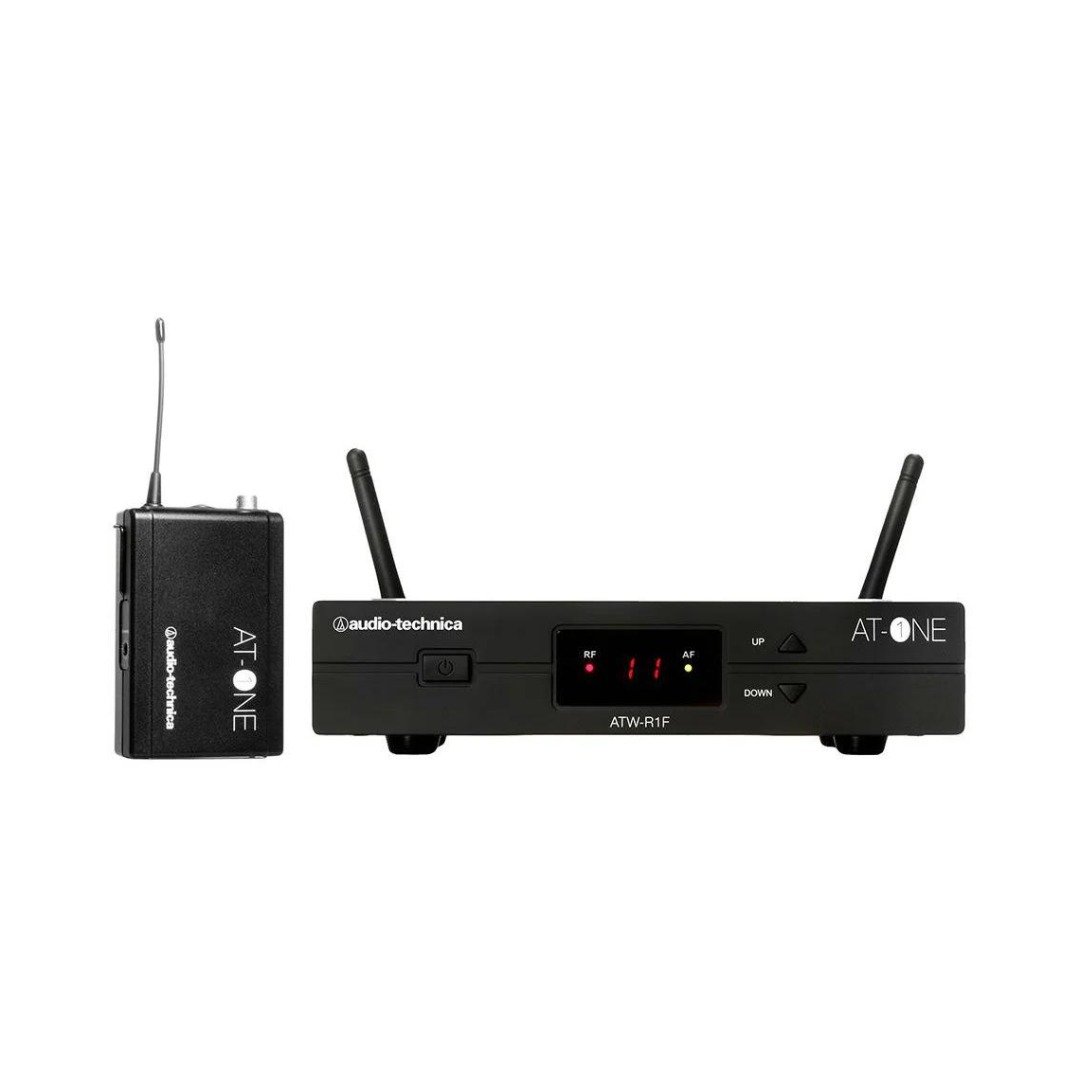

Overall System
- Operating Frequencies: F-Band: 824 – 831 MHz, 863 – 865 MHz
- Number Of Channels: 2 x 4 frequencies
- Frequency Stability: +/- 0.005%, Phase lock loop frequency control
- Modulation Mode: FM
- Frequency Response: 60 Hz – 16 kHz
- Operating Range: 60m, typical

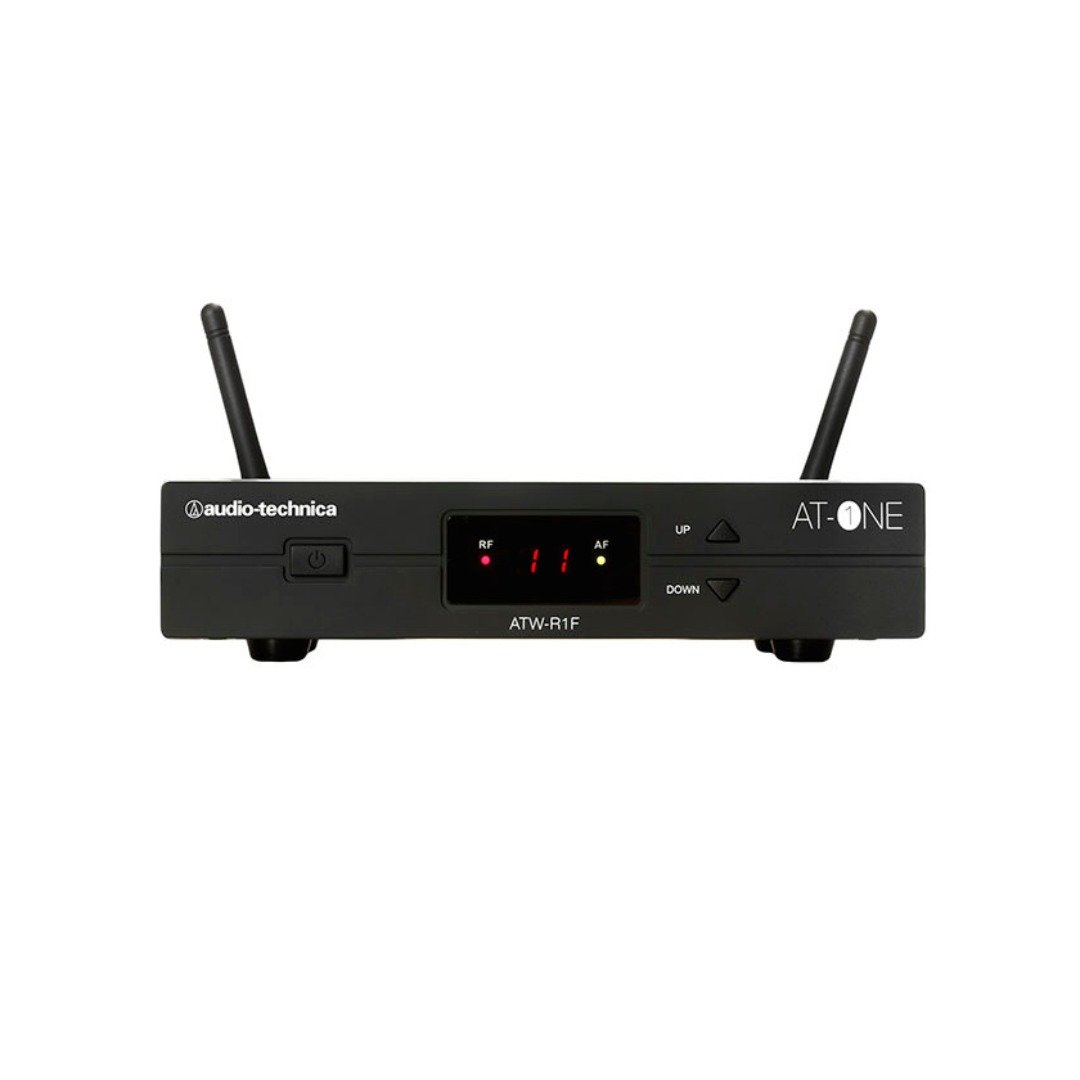

Receiver
- Receiving System: Antenna switching diversity
- Image Rejection: 55dB minimum
- Dynamic Range: HH: 108 dB, BP 103 dB (@ max deviation)
- Sensitivity: 10dBµV (S/N 60dB @ 20 kHz deviation)
- Total Harmonic Distortion: <1% – 20 kHz deviation @ 1 kHz
- Audio Output Unbalanced: -2dBV
- Audio Output Balanced: 4dBV
- Output Connectors (Microphone): Balanced: XLRM-type
- Output Connectors (Instrument): Unbalanced: 6.3 mm mono jack
- Maximum Output Level: Mic / Line (0 / -20dB)
- Antenna Input: BNC type, 50 – BIAS voltage 12V DC 100mA each
- Dimensions: 200 mm x 42 mm x 122 mm (W x H x D)
- Weight: 418 g without accessories
- Accessories Included: AC Adapter, Antennas, Rack mount adapter, protective carrying case

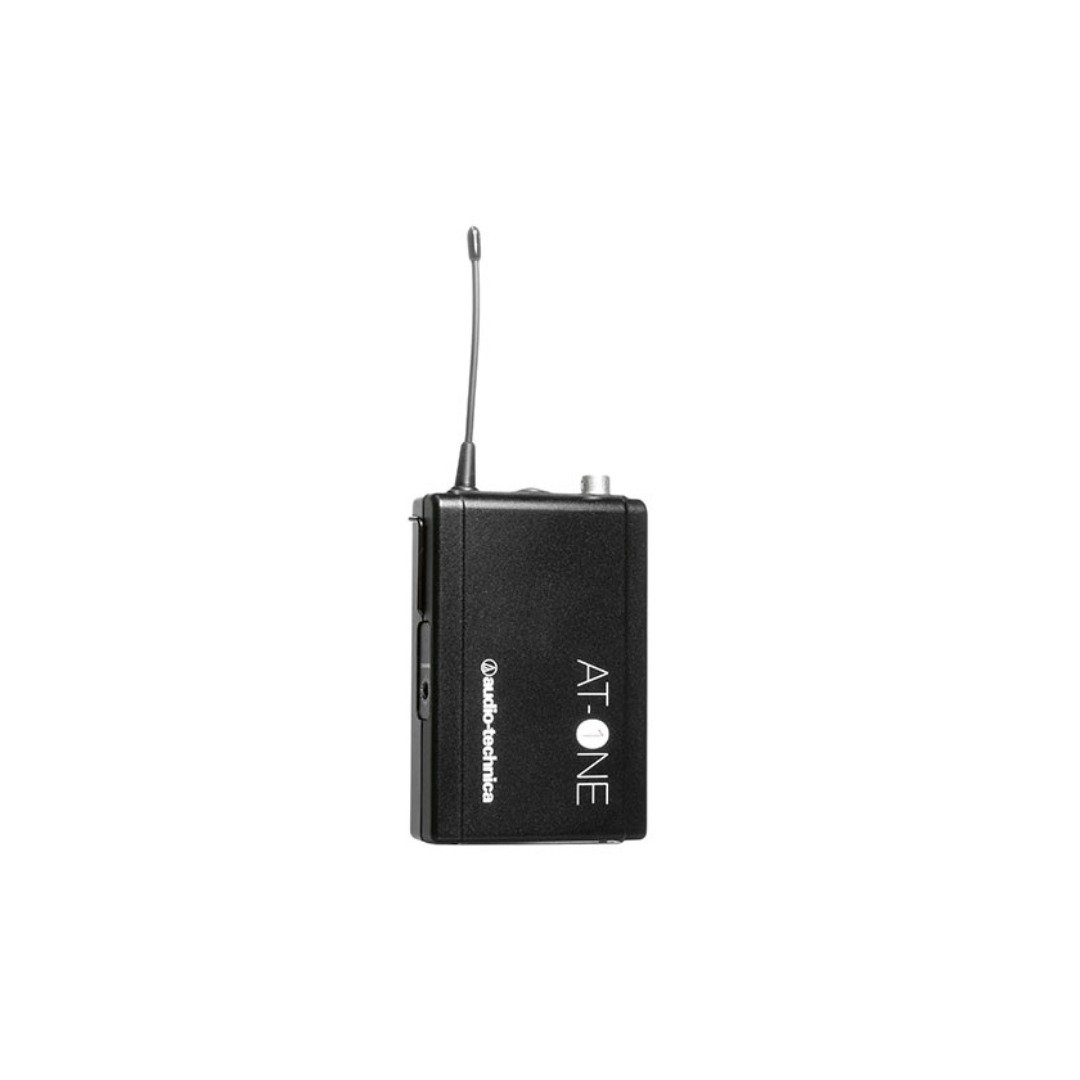

Belt Pack
- RF Power Output: 10 mW
- Spurious Emissions: Following national regulations
-
Input Connections:
- Pin 1: GND
- Pin 2: INST
- Pin 3: Mic
- Pin 4: DC Bias +10V
- Battery Type: Two 1.5V AA alkaline (not included)
- Battery Life: 10 hours – depending on battery type and use pattern
- Dimensions: 66 mm x 98 mm x 22 mm (W x H x D)
