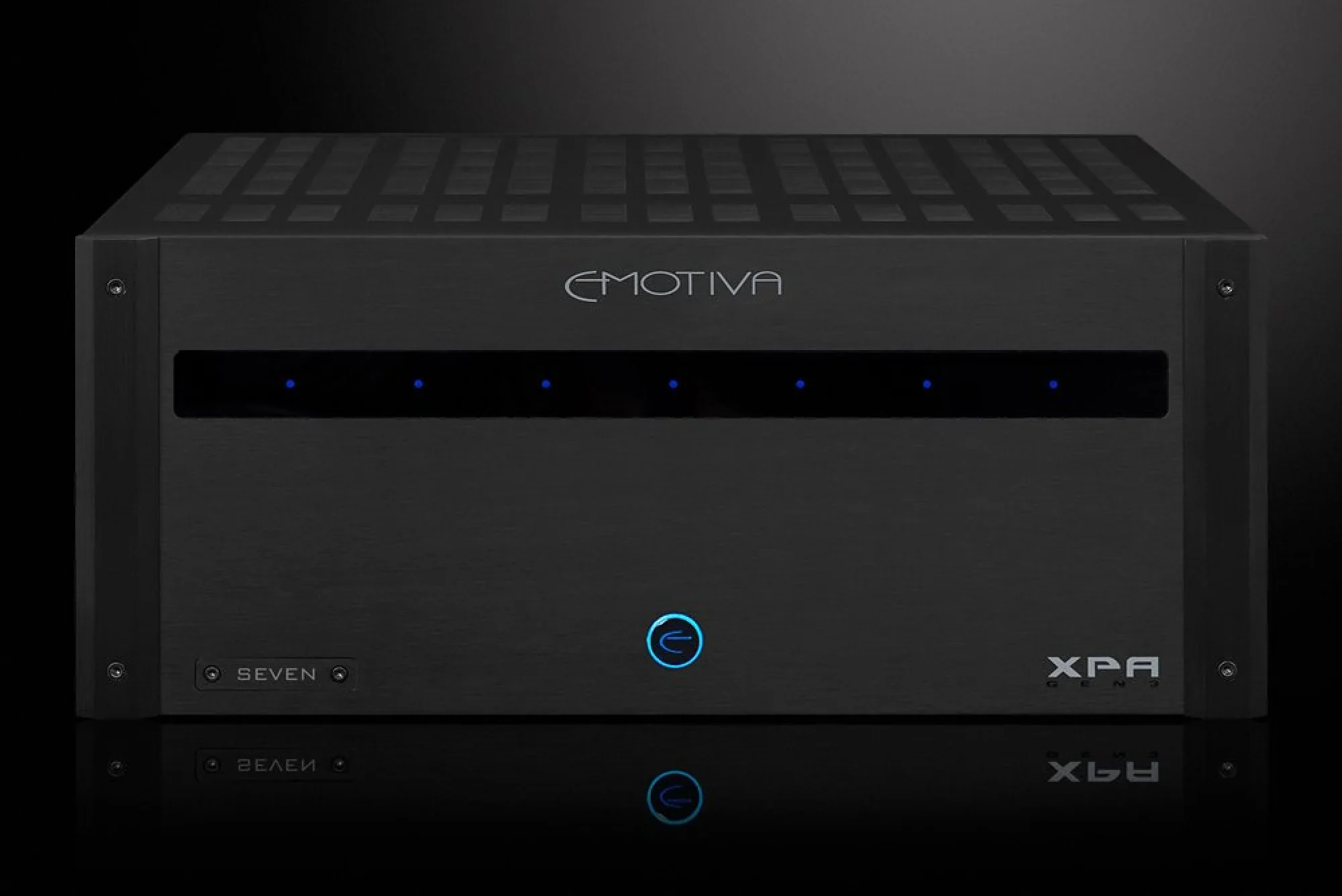

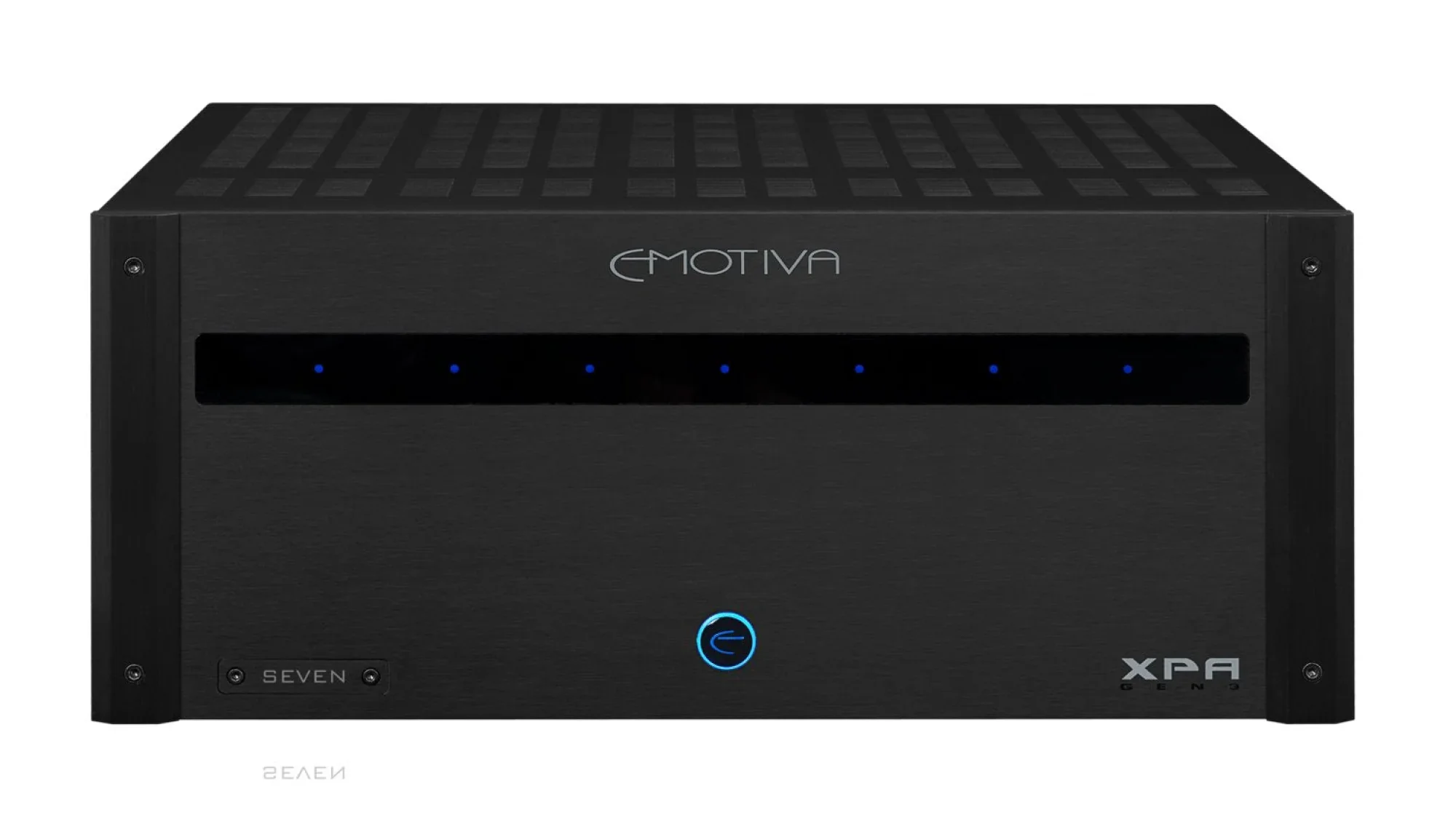

Name: XPA 7 GEN 3
SKU: 2721
Availability: InStock

Power Output	300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven 550 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven 300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven 490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven 200 watts RMS/channel; THD<0.1%; 8 Ohms; ALL SEVEN channels driven
Power Bandwidth (at rated power; 8 Ohm load)	20 Hz to 20 kHz (+ / – 0.1 dB)
Broad Band Frequency Response	5 Hz to 80 kHz +0/-2 dB
THD + noise:	< 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms
Signal to Noise Ratio (8 Ohm load)	> 117 dB; ref FTC rated power; unbalanced input (A-weighted). > 91 dB; ref 1 watt; unbalanced input (A-weighted)
Minimum Recommended Load Impedance (per channel)	4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads)
Damping Factor (8 Ohm load)	> 500
Input Sensitivity (for rated power; 8 Ohm load)	1.5 V
Gain	29 dB
Input Impedance	33 kOhms (balanced) 23.5 kOhms (unbalanced)
Input Connections (High-Powered Single Channel Modules)	Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable
Input Connections (Stereo Modules)	2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable
Speaker Output Connections	Audiophile grade, gold plated, 5-way binding posts
Trigger	Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required Trigger Output: 12 VDC; can drive any load up to 120 mA.
Standby	push button (halo ring changes color to indicate Standby or On)
Status LEDs	one per channel; blue. Status LEDs change to red to indicate a fault condition
AC Power switch	rocker switch (switches AC main power)
Status LEDs switch	disables front panel Status LEDs and dims Standby button halo
Input selector switches (one per channel)	metal toggle switches; select between balanced and unbalanced inputs
Circuit Breaker	press button to reset circuit breaker
Protection	The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.
Dimensions	17” wide x 8” high x 19” deep (unboxed; including feet) 17” wide x 7” high x 19” deep (unboxed; without feet) 24-1/2” wide x 12” high x 24-3/4” deep (boxed)
Weight	53 lbs (unboxed) 58 lbs (boxed)

Reviews

There are no reviews yet.

Be the first to review “XPA 7 GEN 3”

XPA 7 GEN 3

Channel: 7; Class A/B; Output (all channel driven): 200 watts/ Channel RMS @ 8 Ohms
