Tech Specs

Cable Construction Materials:

  • 1.0mm Polished PMMA solid core optical conductor – the optimal monofilament design for lossless data transfers
  • 2.2mm HDPE inside core insulates the optical conductor for optimal data transfer
  • High density 7.0mm PVC jacket gives a flexible and durable foundation around the optical conductor
  • Densely woven cotton braided jacket provides stylish and durable exterior for easy gripping and premium feel without kinking

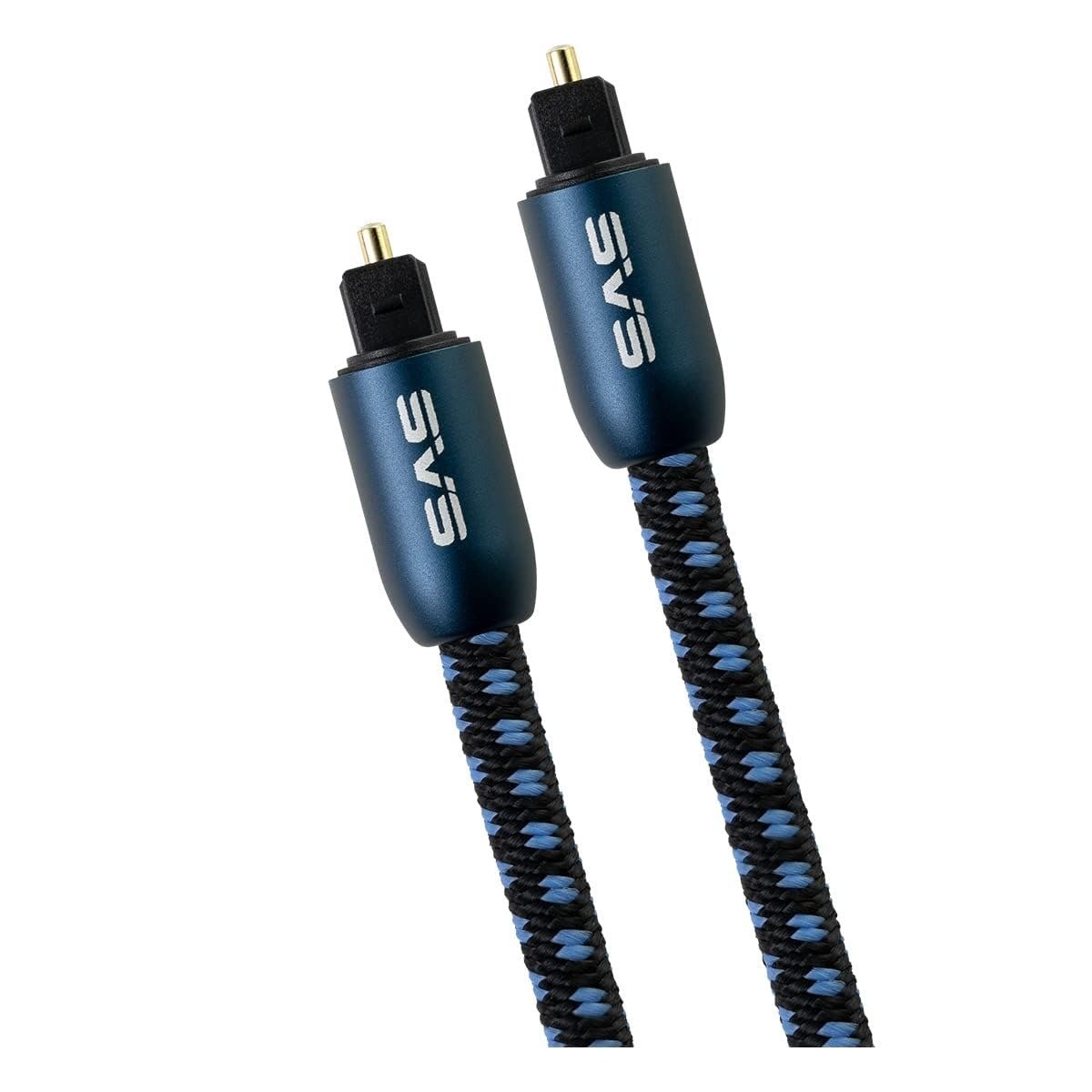

Optical Connector Construction Materials:

  • Precision machined and anodized aircraft grade aluminum shell
  • 24K gold plated brass conductor pin for stable connection

Performance Properties:

  • Digital Data resolution up to 20 and 24 Bits
  • S/PDIF Audio Data Rates up to 24bit / 192kHz
  • Transmission Loss ≤200dB/km
