PRIME WIRELESS PRO SPEAKERS (PAIR)

Frequency Response / Acoustic Data:

• Frequency Response: 42Hz – 25kHz (±3 dB)

Active Speaker Cabinet Dimensions:

• 295mm (H) X 180mm (W) X 228mm (D)
• 11.61″ (H) X 7.09″ (W) X 8.96″ (D)

Passive Speaker Cabinet Dimensions:

• 295mm (H) X 180mm (W) X 225mm (D)
• 11.61″ (H) X 7.09″ (W) X 8.85″ (D)

Package Dimensions:

• 390mm (H) X 465mm (W) X 296mm (D)
• 15.35″ (H) X 18.31″ (W) X 11.73″ (D)

Weight:

• Active Speaker Weight Unboxed: 12.3 lbs (5.58kg)
• Passive Speaker Weight Unboxed: 11.68 lbs (5.3kg)
• Packaged Weight System Pack: 28.0 lbs (12.7kg)

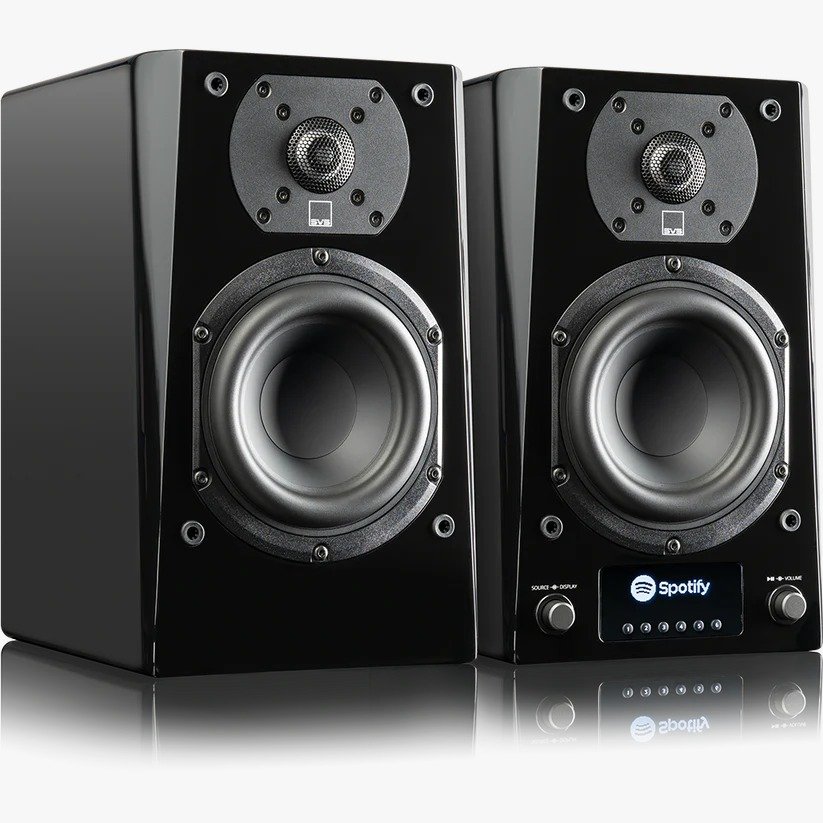

Driver Specs:

1” Aluminum Dome Tweeter:

• FEA-optimized diffuser for airy and unveiled presentation
• Aluminum dome for exceptional transient response

5.25″ Mid-bass Driver:

• Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
• Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
• Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
• Vented voice coil former minimizes air compression artifacts

Amplifier Specs:

• Dual Class-D Power Amps for Discrete Driver Bi-amplification
• Digital controlled tweeter-to-woofer crossover: 2kHz (12dB/octave slope)

Speaker Cabinet Specs:

• Finish Options: Piano Gloss Black and Piano Gloss White
• 2.36″ wide-flared rear-firing port

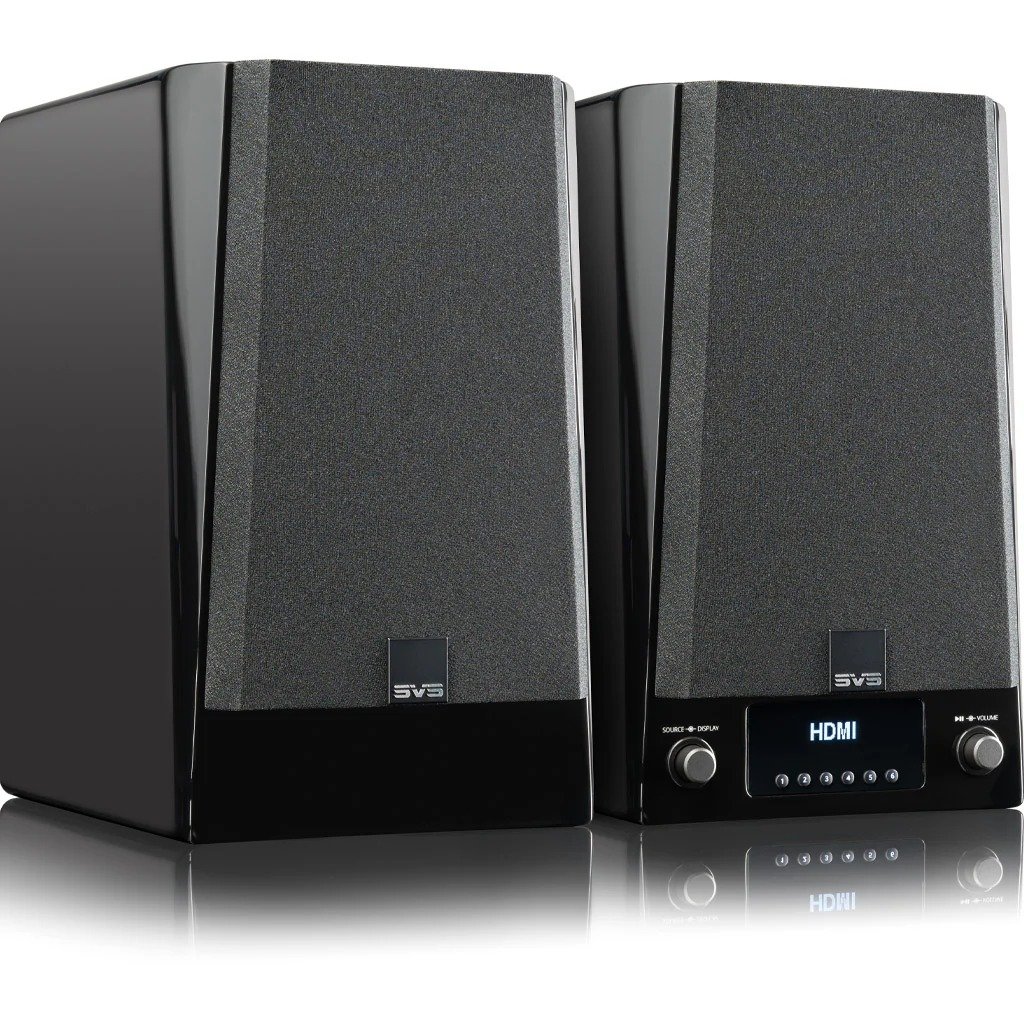

• Protective cloth grille with pin/cup retention system
• Elastomer stick-on bumper feet (adds 3mm to height)
• Acoustically transparent and FEA optimized grilles minimize diffraction
• FEA-optimized cabinet and bracing eliminates resonances
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response

Wireless Streaming Options

• DTS Play-Fi – Lossless 192kHz/24-bit via Critical Listening Mode over WiFi
• Apple Airplay 2 for iPhone and iOS Devices, Chromecast for Android phones and Devices: CD Quality
• Bluetooth 5.0 with AAC and aptX
• Spotify Connect

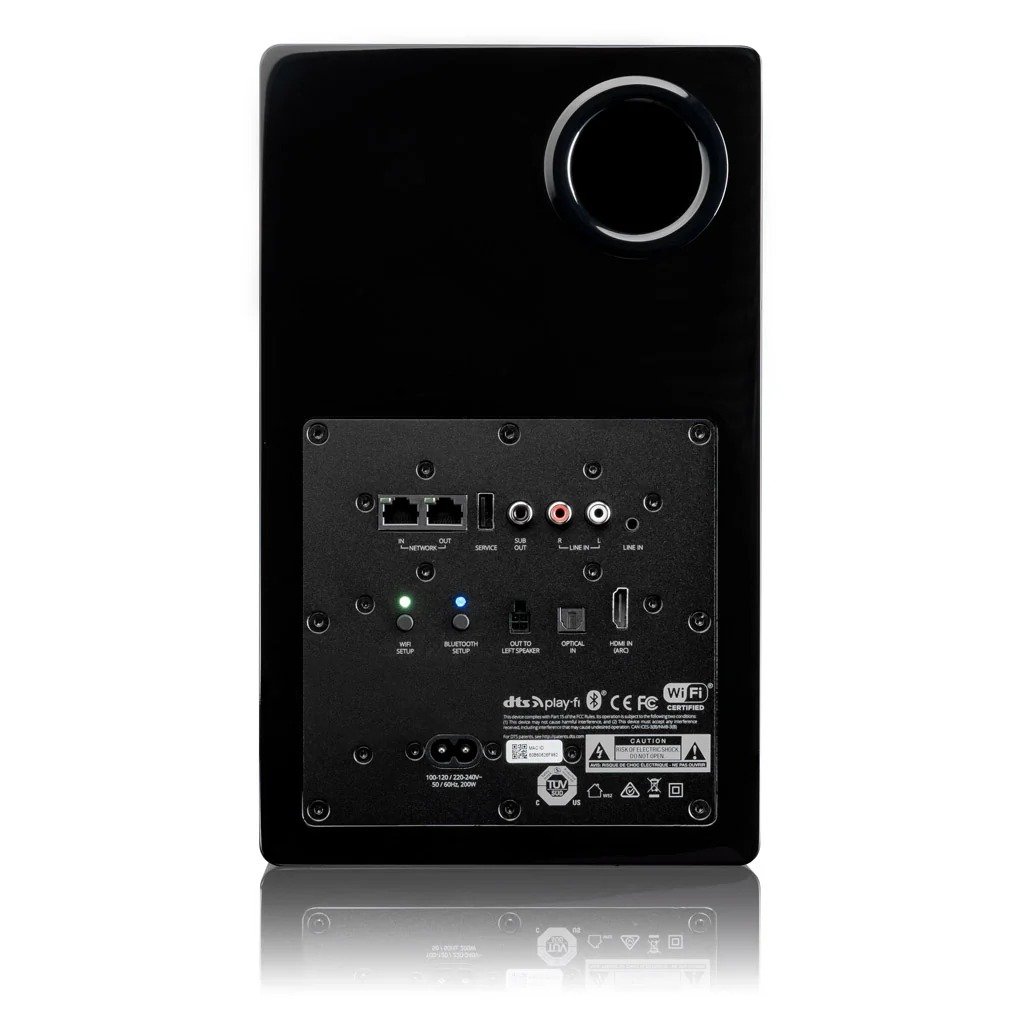

Input Specs:

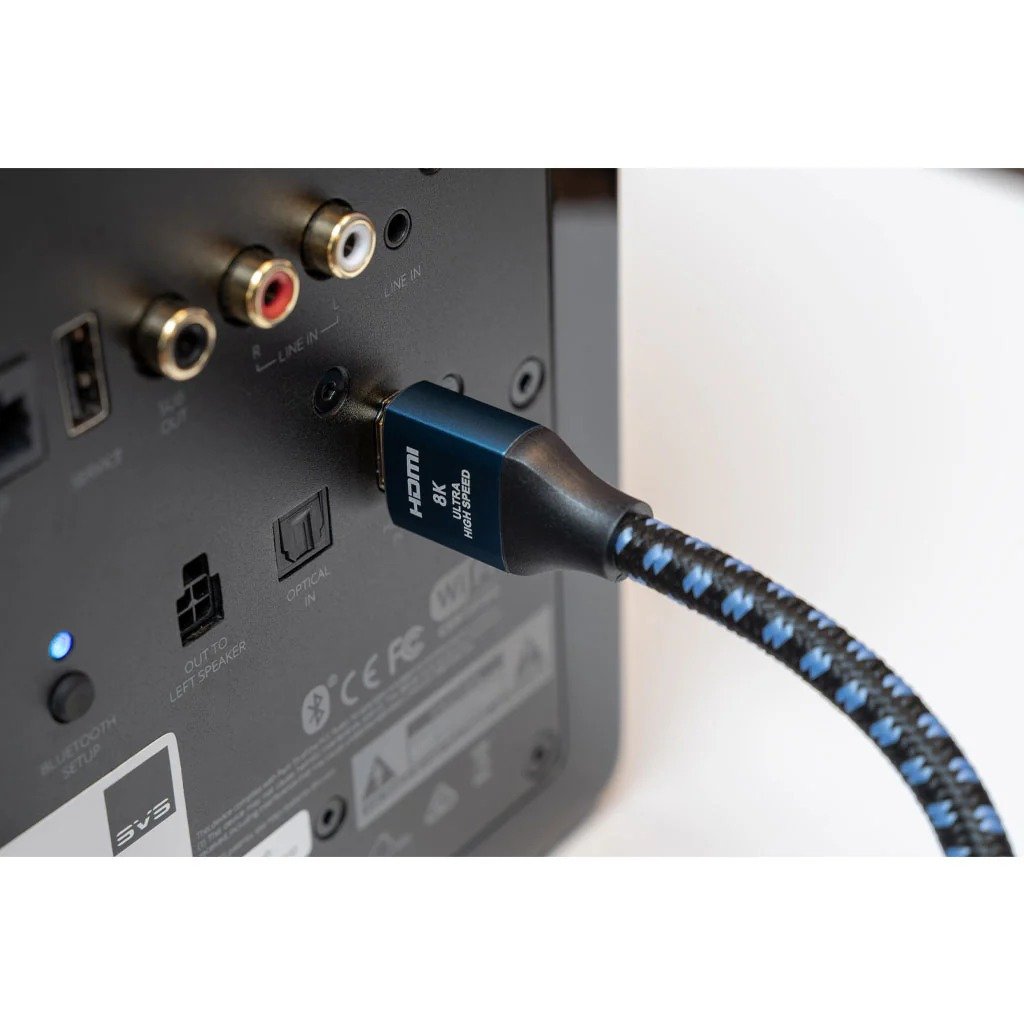

• HDMI audio input. Supports ARC and eARC
• Left/Right RCA Input: Input Impedance: 20K
• 3.5mm Aux Input: Input Impedance: 20K
• Toslink Optical Input: S/PDIF receiver works at a wide range of sampling frequencies up to 96kHz
• Bluetooth 5.0 with AAC and aptX
• 6 front panel presets for one-touch access to music services and playlists
• Ethernet
• USB service port also for powering wireless accessories: See SoundPath Wireless Audio Adapter

Output Specs:

• Subwoofer Output: 2V MAX – Auto Detecting – Activates 80Hz High Pass Filter on the speakers when subwoofer detected
• Ethernet

General Specifications:

• 3.15” wide Front Panel OLED display: Displays Source, Artist Name, Song Title, Volume and Rich meta data from Wi-Fi and Bluetooth audio sources
• Switch Mode Power Supply: Auto Switching 100 – 120V / 220 – 240V, 50/60Hz
• Fuse: 15A/250V
• Detachable Power Cord

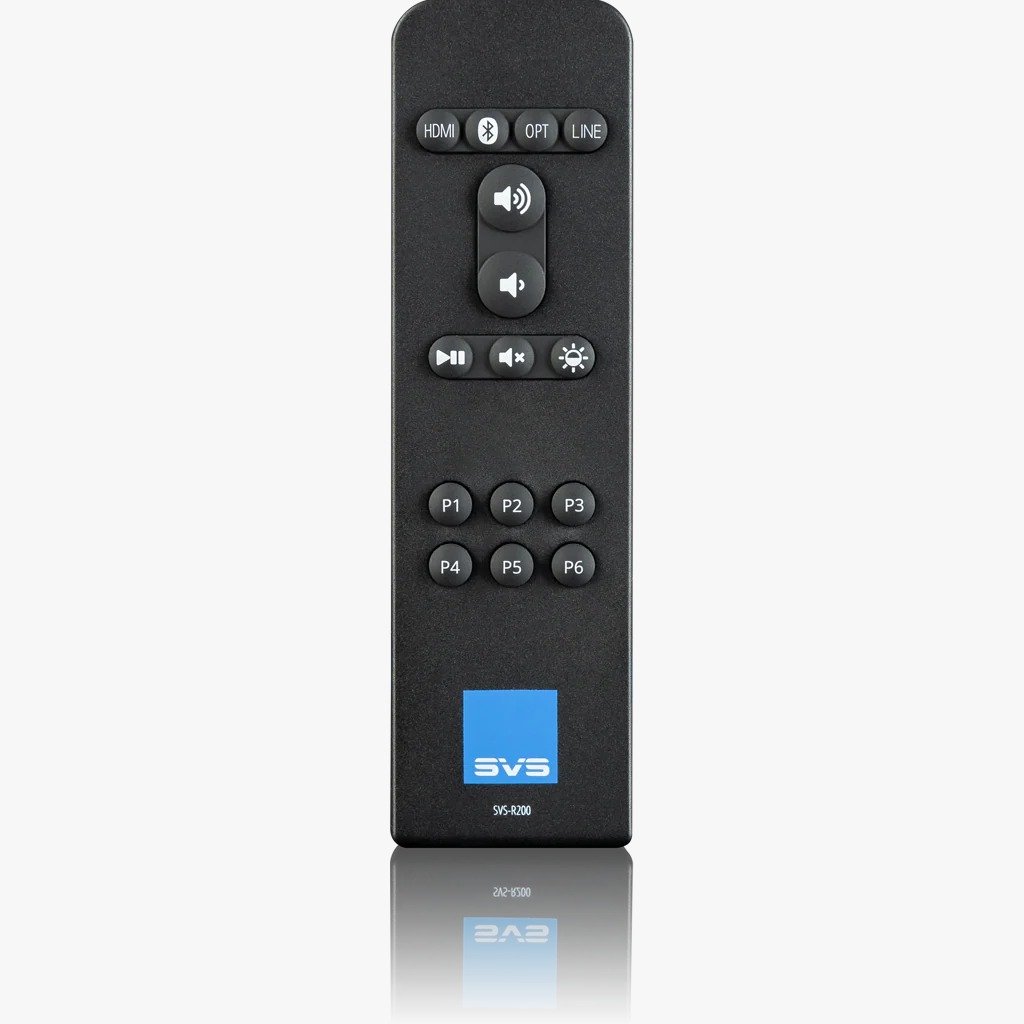

• IR Remote control and 2 AAA batteries included
• 8 x Elastomer stick-on bumper feet included
• Active-Passive Speaker Interconnect Cable: 3m / 10ft Included
• 15 ft and 20 ft Prime Wireless Speaker System interconnect cables are available upon request. Please call (877.626.5623) or email us for pricing and to place an order.
