SPECIFICATIONS

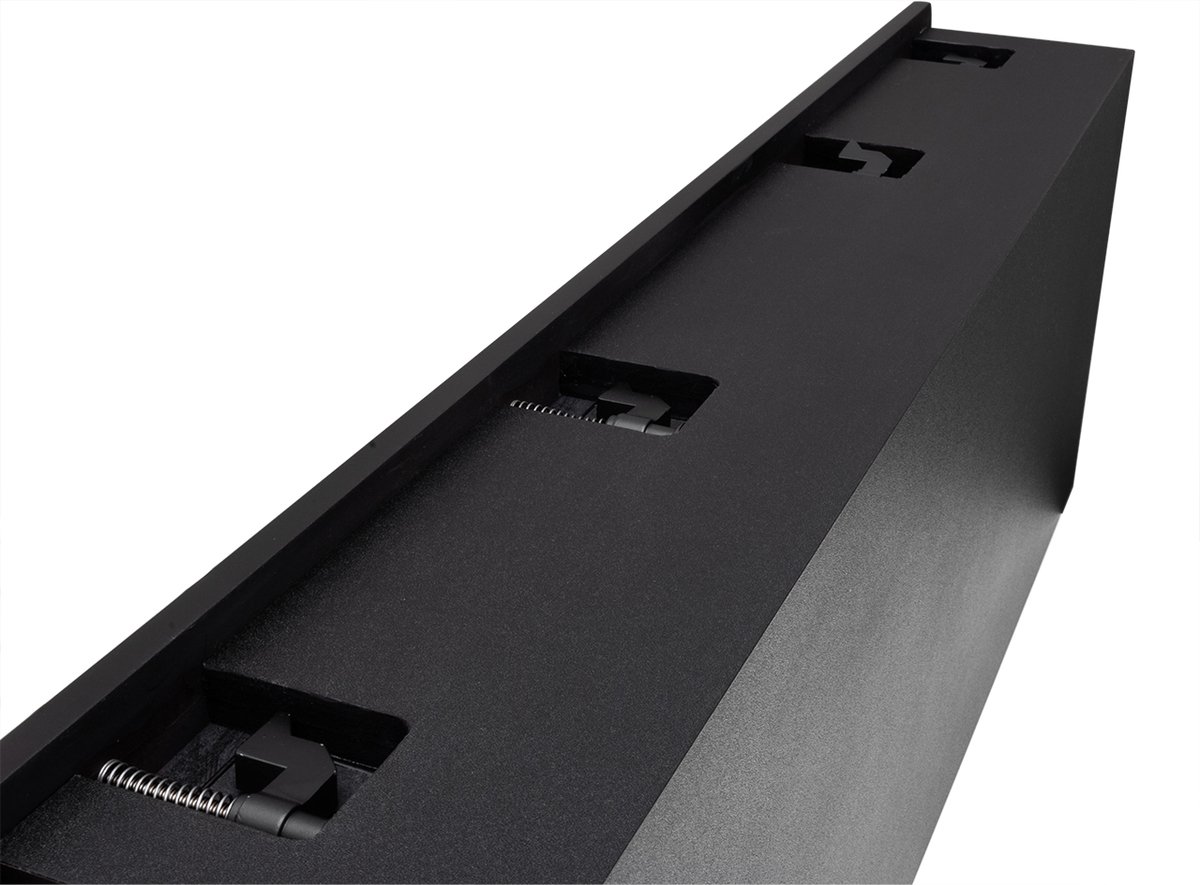

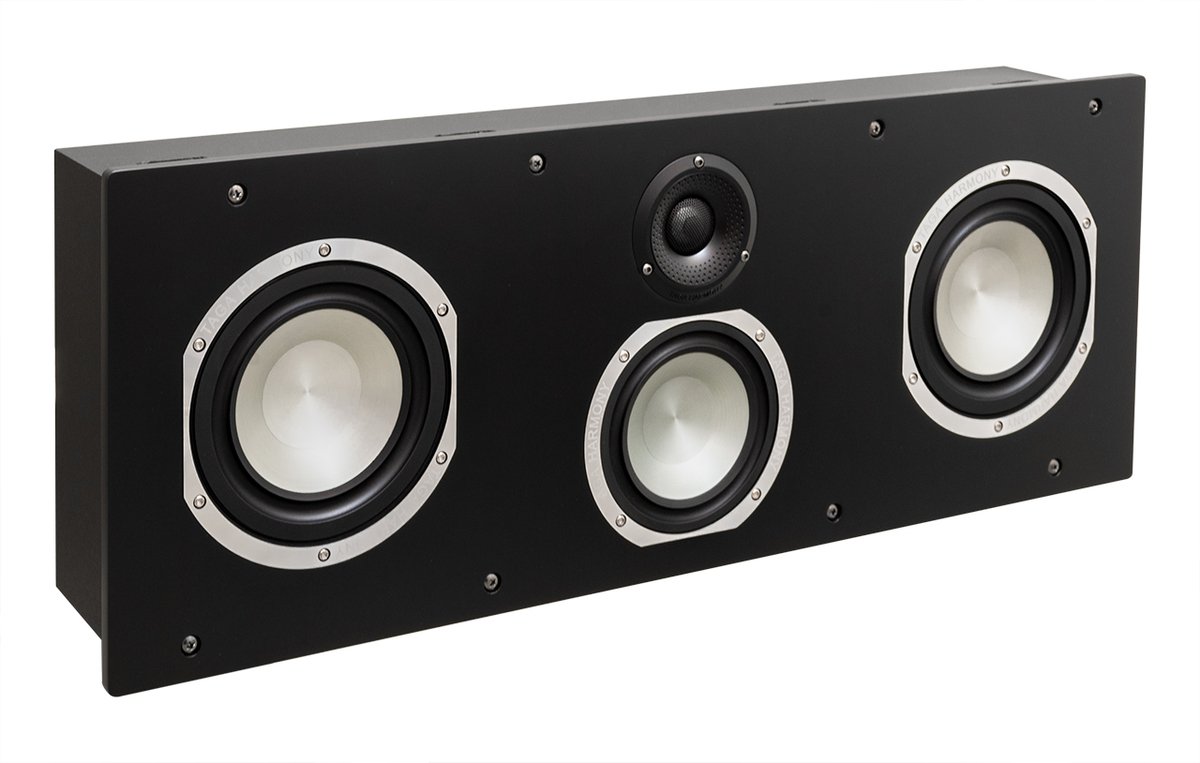

| Design | In-wall Left / Center / Rear / Surround 3-way, 4 drivers TLIE-I enclosure SSCS in-wall clamp system Crossover points: 550Hz, 4.2kHz |
| Power handling | 20 -200W (recommended amplifier power) 150W RMS |
| Frequency response | 39Hz – 40kHz |
| Impedance | 4ohm |
| Sensitivity | 92dB |

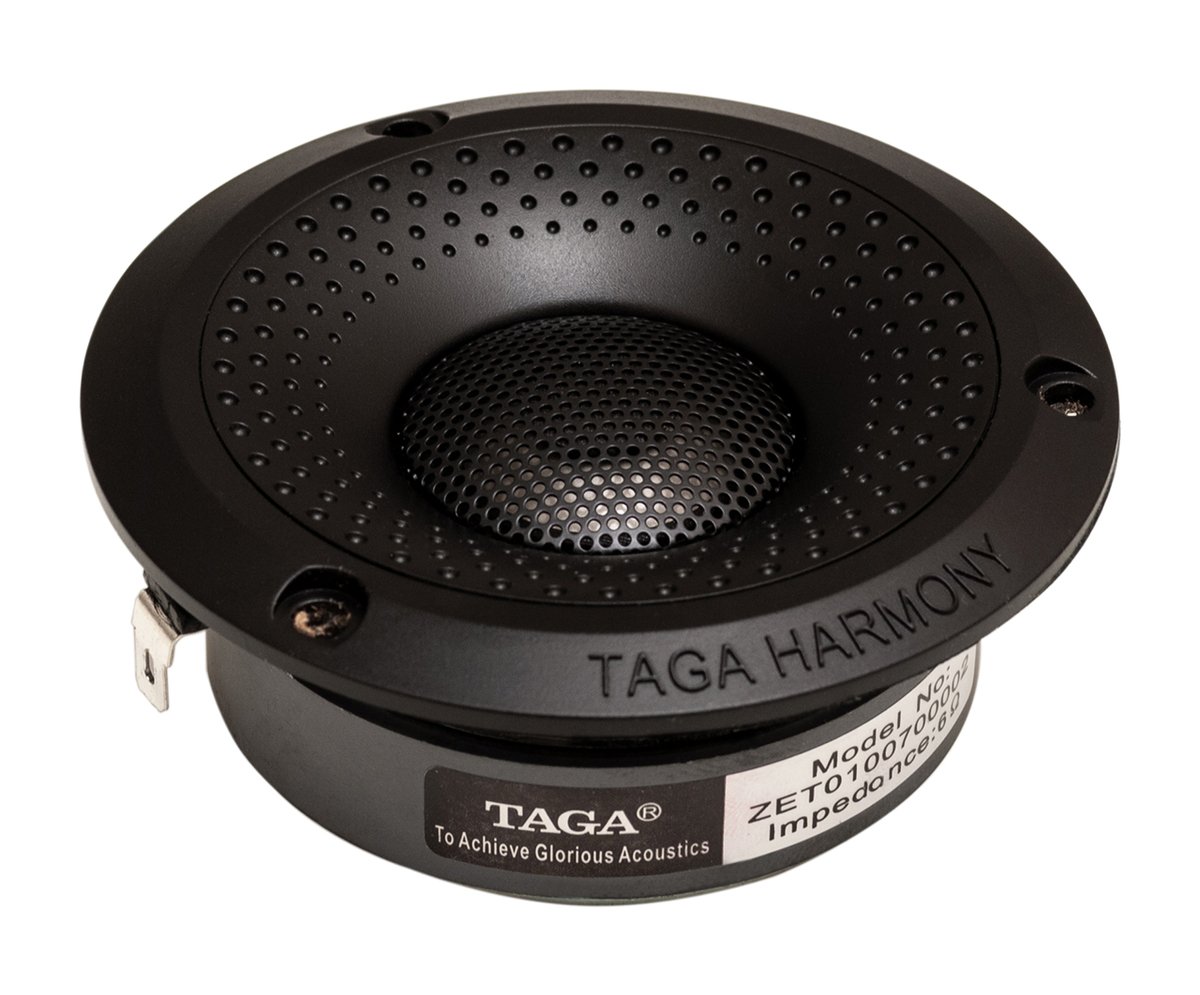

| High-frequency driver | 25 mm (1”), TPTTD-I, TWG-I |
| Midrange driver | 133 mm (5.25″) TPACD-I, TRCS |

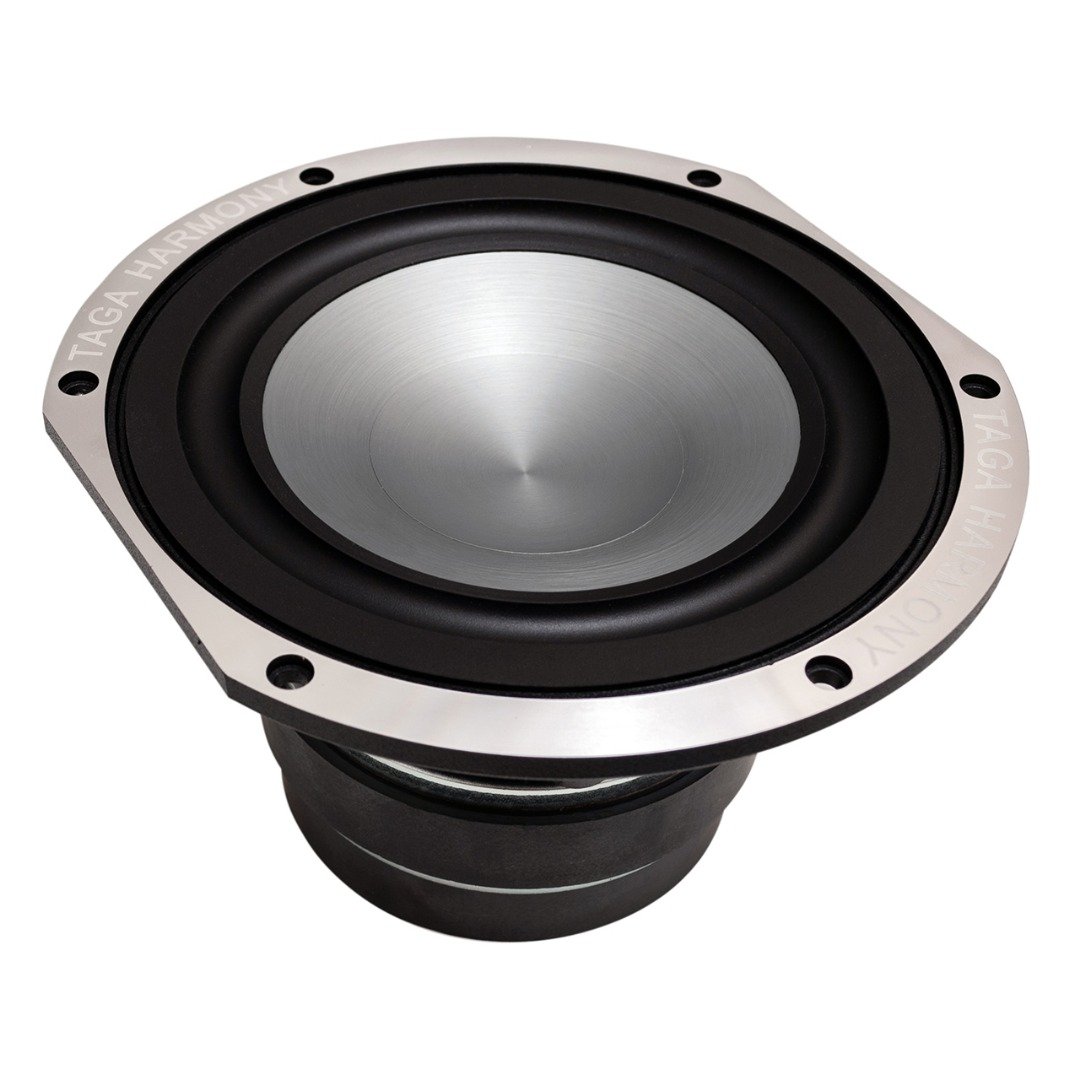

| Bass driver | 2 x 165 mm (6.5″) TPACD-I, TRCS |
| Features / accessories | Magnetically mounted grill |
| Dimensions (H x W x D or Dia x D) | Vertically: 77 x 31 x 12.5 cm (front panel with grill) 74 x 28 x 11.2 cm (front panel without grill) 71.6 x 25.6 x 11 cm (dimensions in the wall) |
| Cutout Dimensions (H x W or Dia) | 72.4 x 26.4 cm (vertically) |
| Minimum Mounting Depth | 12 cm |
| Weight | 13 kg / pc |
