SPECIFICATIONS

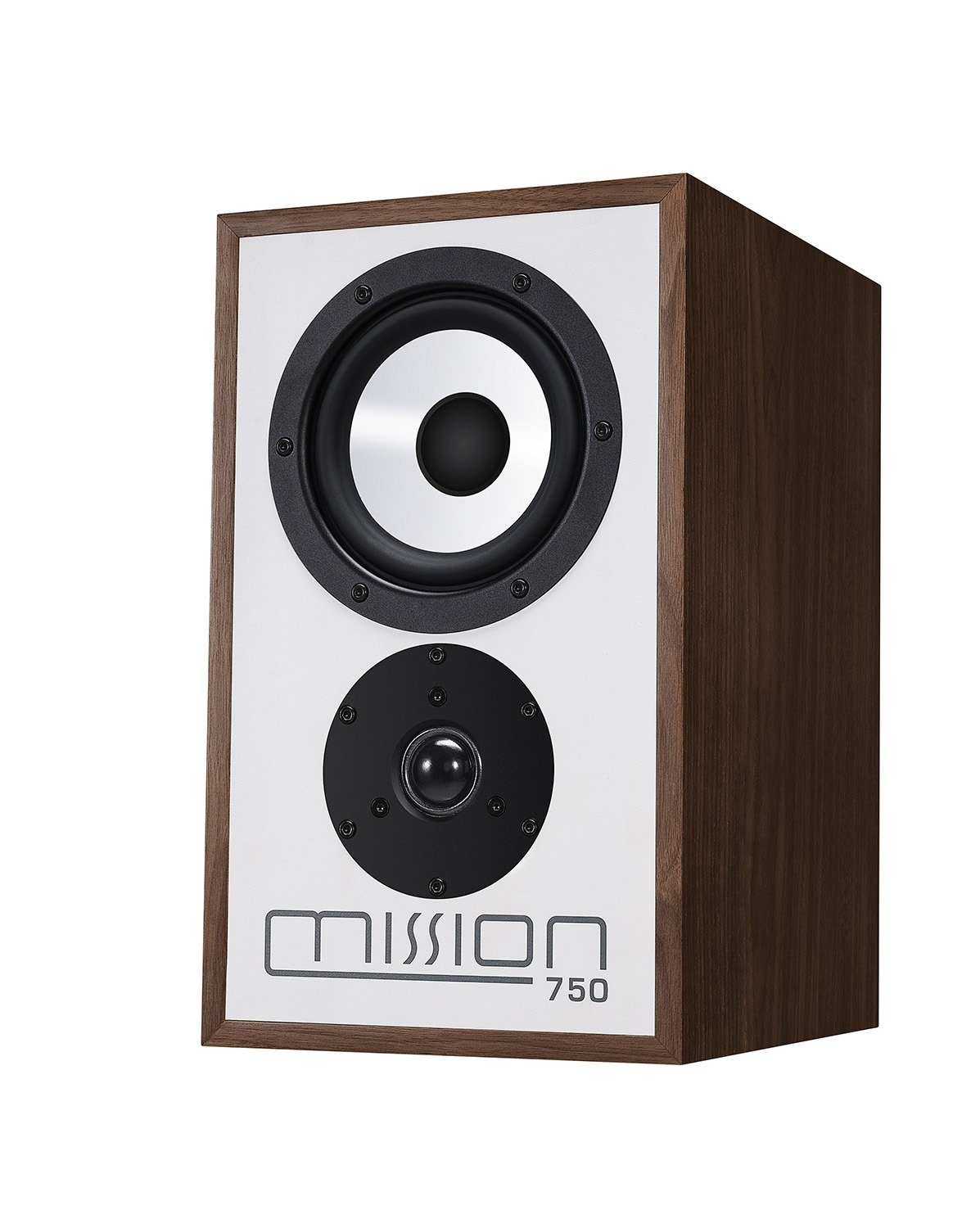

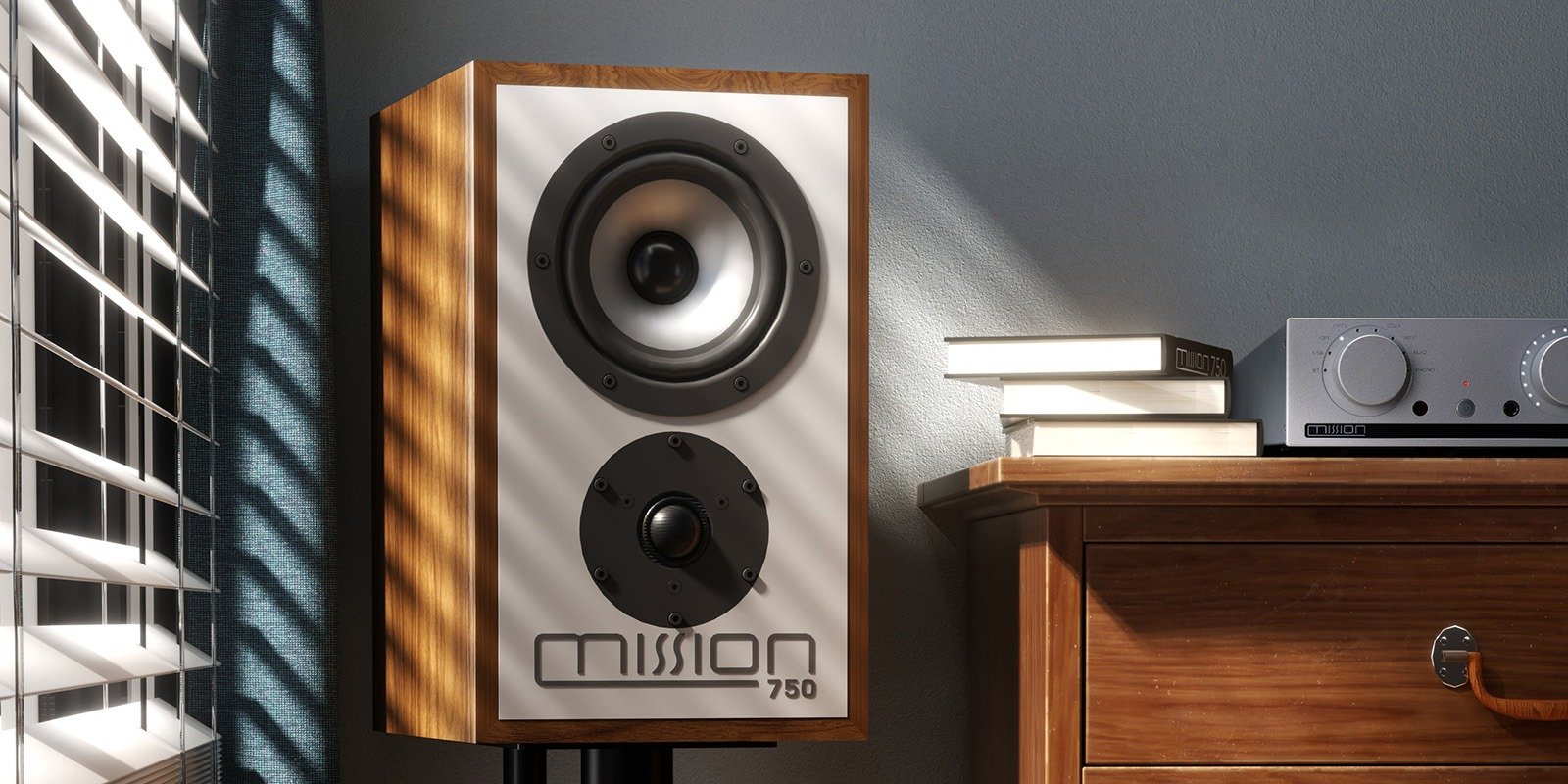

| Model | Mission 750 |
| General description | Two-way standmount |
| Design philosophy and core technology | |
| Enclosure type | Bass reflex |
| Transducer complement | 2-way |
| ABR | |
| Bass driver | 5.25″ (135mm) mineral loaded polypropylene cone |
| Midrange driver | |
| Treble driver | 1.25″ (28mm) Soft Dome |
| Full-range driver | |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 86dB |
| Recommended amplifier power | 25W – 100W |
| Peak power handling | |
| Peak SPL | 103dB |
| Nominal impedance | 6Ω (Compatible 8Ω) |
| Minimum impedance | 4.5Ω |
| Frequency response(+/-3dB) | 48Hz – 20kHz |
| Bass extension(-6dB) | 42Hz |
| Crossover frequency | 2.4kHz |
| Cabinet Volume (in litres) | 12.2L |

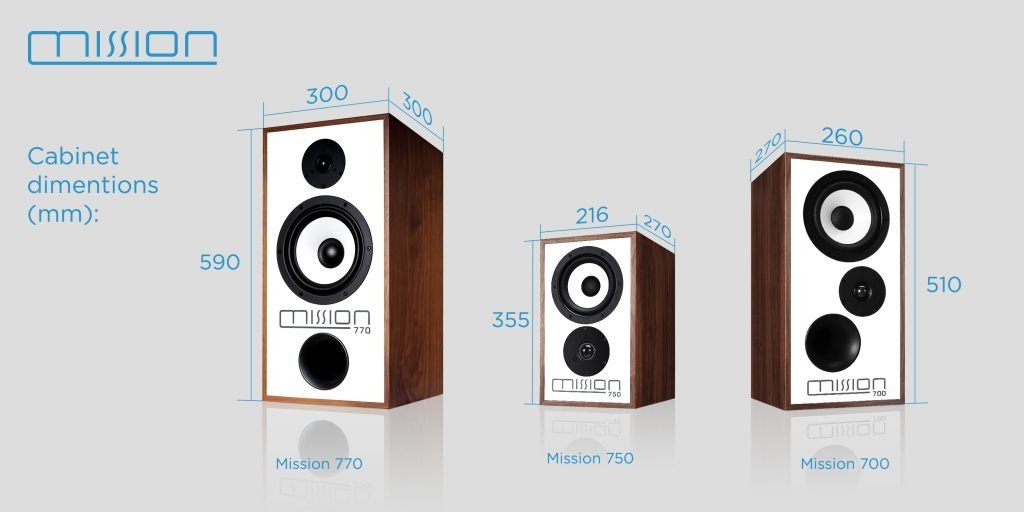

| Dimensions (mm) | |
| Height (on plinth) | 355mm |
| Width | 216mm |
| Depth (with terminals) | (270 + 35) mm |
| Carton size | 565 * 395 * 485 mm |
| Net weight | 9.0kg / pcs |
| Gross weight | 19.5kg / ctn |
| Finish | Walnut or Black Oak real wood veneer with white bafe finish |
| Standard accessories | rubber feet |
