General Specifications
- Sound system
- 7.1.4 channel
- Power supply
- 100 – 240V AC, ~ 50/60Hz
- Total speaker power output* (Max. @THD 1%)
- 960 W RMS
- Soundbar output power** (Max. @THD 1%)
- 500 W
- Surround speaker output power*** (Max. @THD 1%)
- 2 x 80 W
- Subwoofer output power**** (Max. @THD 1%)
- 300 W
- Soundbar transducer
- 6x (44×80)mm racetrack drivers, 2x 1″ (25mm) tweeters, 2x 2.75″ (70mm) up-firing full-range drivers
- Surround speaker transducer
- 2x (44×90)mm racetrack drivers, 2x 2.75″ (70mm) up-firing full-range drivers
- Subwoofer transducer
- 10” (260mm)
- Networked standby power
- < 2.0 W
- Operating temperature
- 0°C – 45 °C
- Lithium battery
- 3.635V, 6600mAh
- Detachable surround speaker playtime
- up to 10 hours (may vary according to content type and volume level)
Audio Specifications
- Frequency response
- 33Hz – 20kHz (-6dB)
- Audio inputs
- Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions

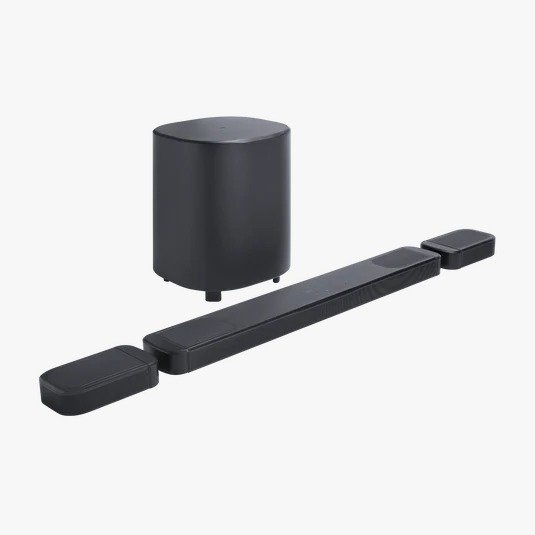

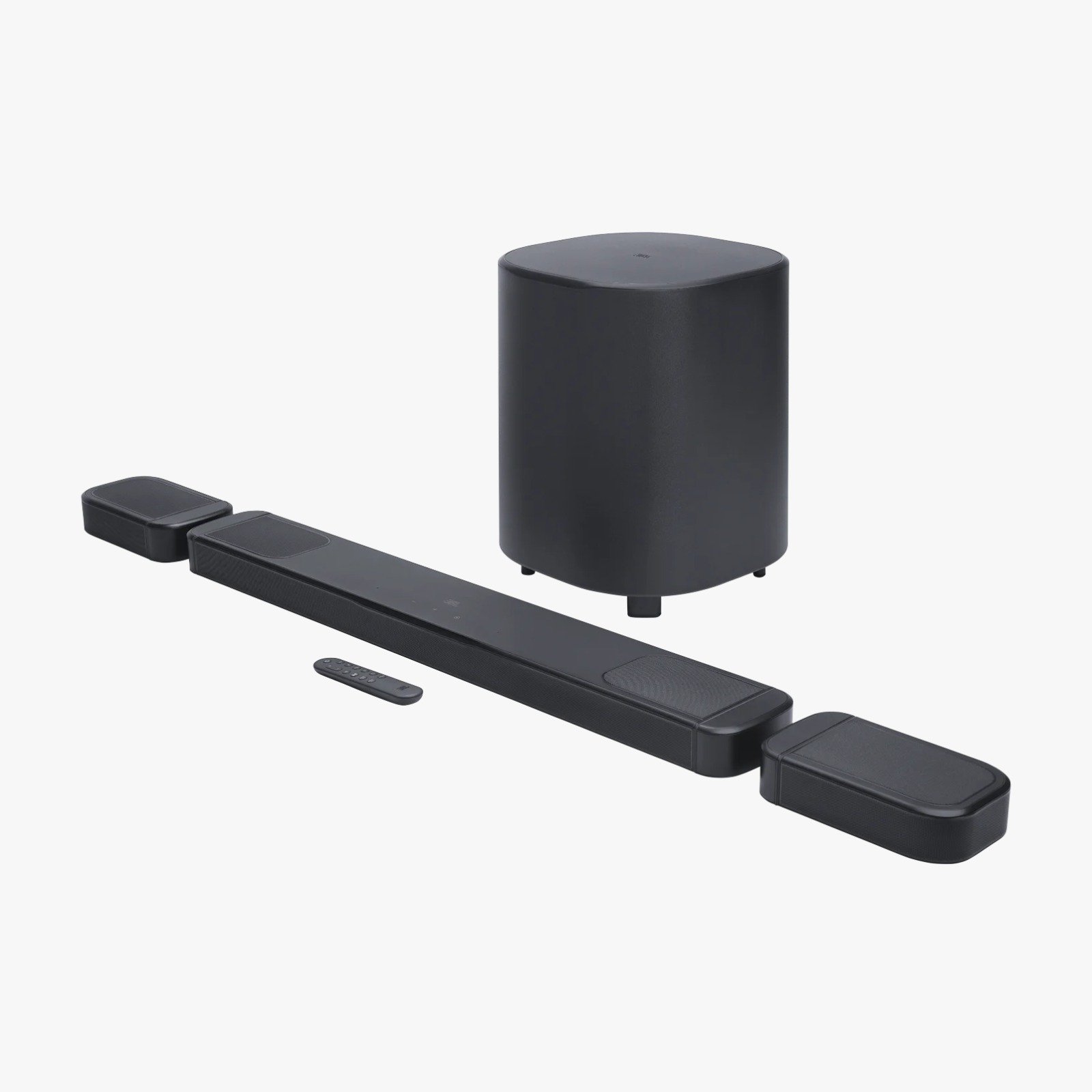

- Total soundbar dimensions (W x H x D)
- 1203 x 52x 128mm / 47.4″ x 2.0″ x 5.0″

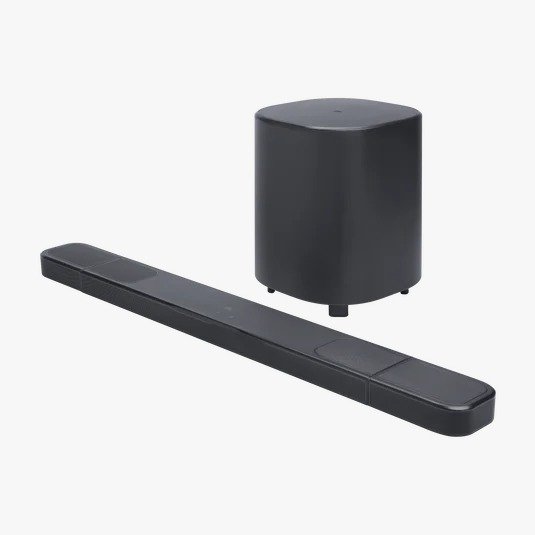

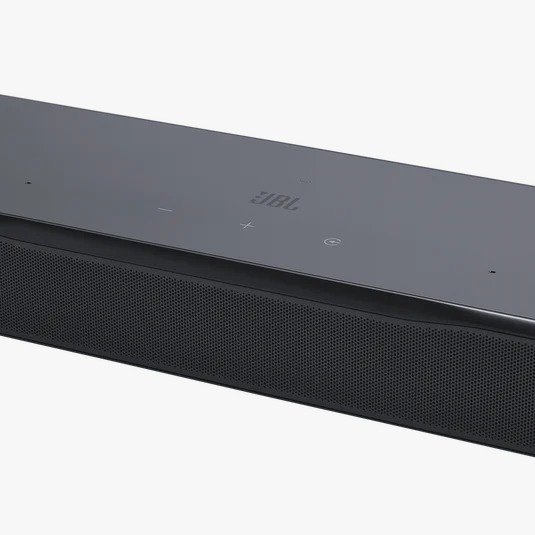

- Soundbar dimensions (W x H x D)
- 854 x 52 x 128mm / 33.6″ x 2.0″ x 5.0″

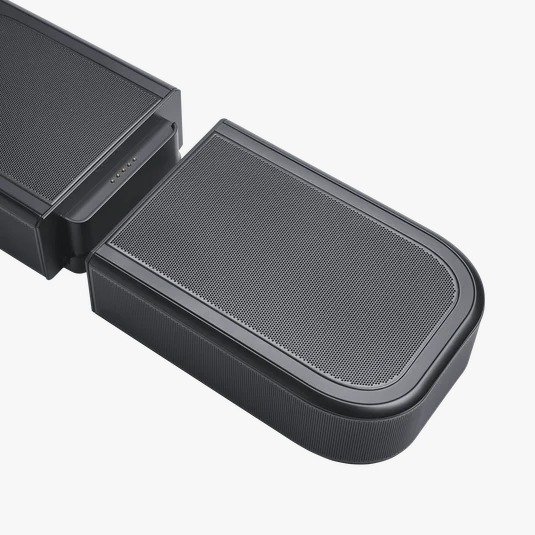

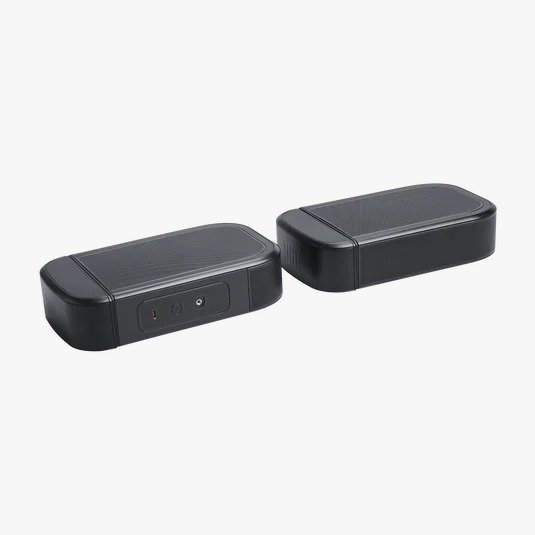

- Detachable surround speaker dimensions (each) (W x H x D)
- 189x 52 x 128mm / 7.4″ x 2.0″ x 5.0″

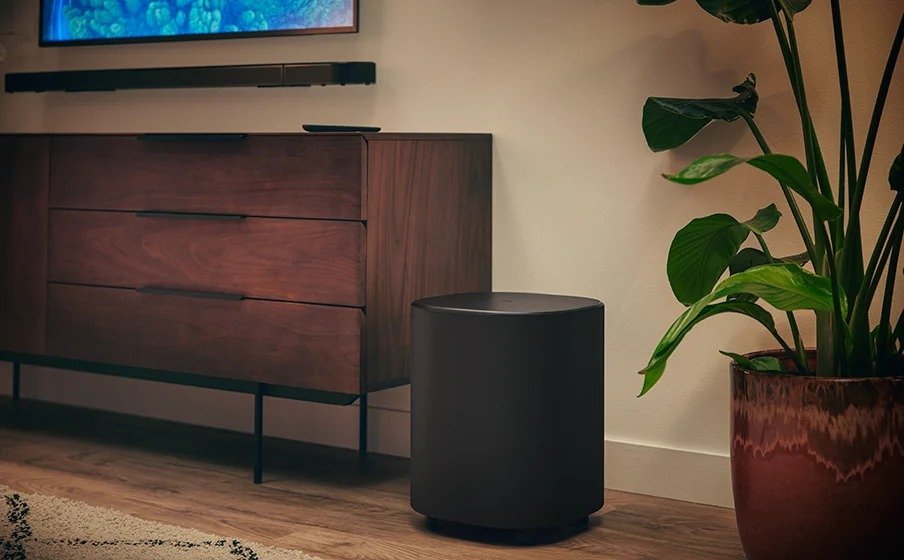

- Subwoofer dimensions (W x H x D):
- 325 x 400 x 325 mm / 12.8″ x 15.7″ x 12.8″
- Soundbar weight
- 5.5kg / 12.1 lbs
- Detachable surround speaker weight (each)
- 0.9 kg / 2 lbs
- Subwoofer weight
- 9.1 kg / 20 lbs
- Packaging dimensions (W x H x D)
- 980 x 398 x 495 mm / 38.58″ x 15.67″ x 19.49″
- Packaging Weight
- 22.6kg / 49.8lbs (EMEA/UK/AU/NZ);19.9kg / 44.4lbs (Others)
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5V DC, 0.5A
- Supporting file formats
- mp3
- MP3 codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16 – 48 kHz
- MP3 bitrate
- 80 – 320 kbps
- Bluetooth version
- v5.3
- Bluetooth profile
- A2DP v1.3, AVRCP v1.5
- Bluetooth transmitter frequency range
- 2400 MHz – 2483.5 MHz
- Bluetooth transmitter power
- <15 dBm (EIRP)
- Wi-Fi network
- IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- 2.4G Wi-Fi transmitter frequency range
- 2412 – 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
- 2.4G Wi-Fi transmitter power
- < 20 dBm (EIRP)
- 5G Wi-Fi transmitter frequency range
- 5.15 – 5.35GHz, 5.470 – 5.725GHz, 5.725 – 5.825GHz
- 5G Wi-Fi transmitter power
- 5.15 – 5.25GHz <23dBm,
- 5.25 – 5.35GHz & 5.470 – 5.725GHz <20dBm, 5.725 – 5.825GHz <14dBm (EIRP)
- 2.4G wireless transmitter frequency range
- 2406 – 2474MHz
- 2.4G wireless transmitter power
- <10dBm (EIRP)
- Note
- Band 5.6 – 5.64 GHz will be disabled when shipped to Australia / New Zealand.
Video Specifications
- HDMI video input
- 3
- HDMI video output (with Enhanced Audio Return Channel, eARC)
- 1
- HDMI HDCP version
- 2.3
- HDR pass through
- HDR10+, Dolby Vision
